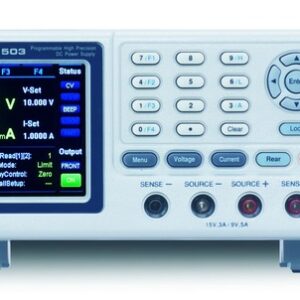

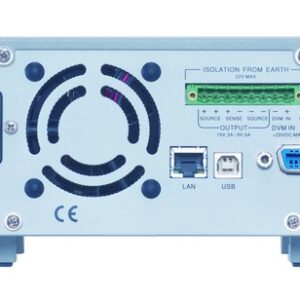

Bộ nguồn D.C có độ chính xác cao có thể lập trình dòng PPH-1503

Tính năng, đặc điểm

• Dual Range Output (0~15V/0~3A) or (0~9V/0~5A)
• 3.5 Inch TFT LCD Display
• Constant Voltage and Constant Current Operation
• Built-in DVM Measurement Function
• High Measurement REsolution (1mV/0.1mA for 5A Range);(1mV/0.1uA for
• 5mA Range)
• EXternal Relay Control Output On/Off
• Sink Current Capability (Maximum:2A)
• Digital Panel Control
• Selectable Output and Input (DVM) Ports From Front or Rear Panel
• Key Lock Function
• 5 Sets of Preset Memory Including Power Output ON/OFF States
• High Speed Transient Recovery Time(<40us within 100mV ; <80us within
• 20mV)
• OVP/OCP/OTP Protection to Prevent DUT Damage
• Standard Multiple Interfaces: USB / LAN /GPIB
• Labview Driver and PC Remote Control Software

Tải file Thông số kỹ thuật: PPH-1503 (English Version)
