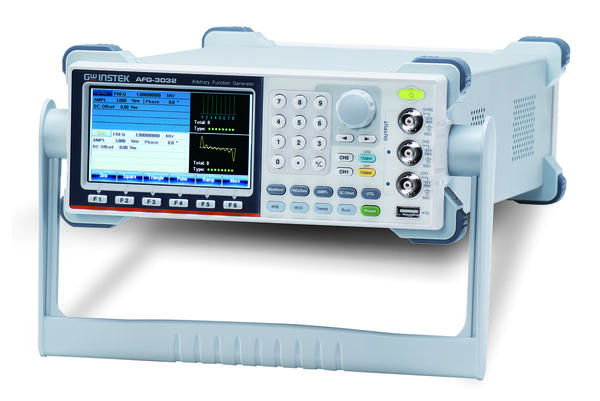

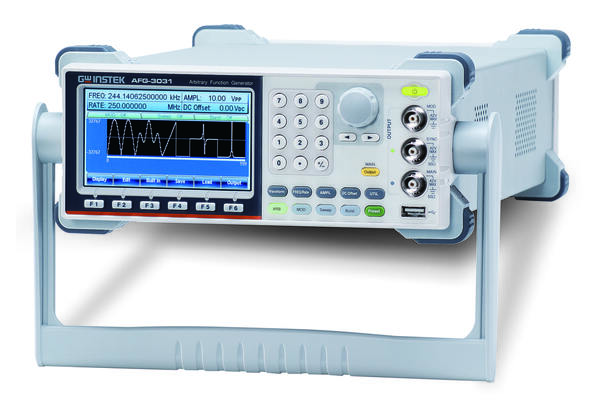

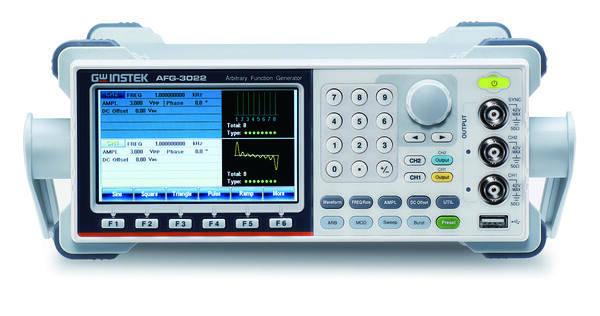

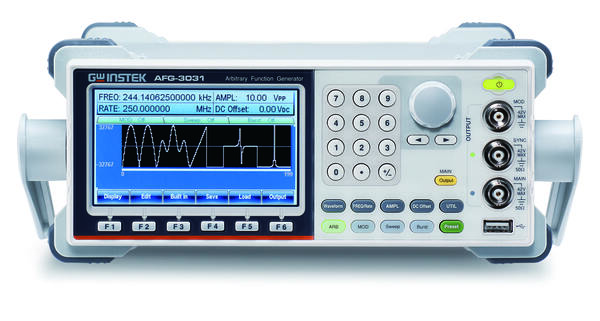

Bộ tạo chức năng tùy ý AFG-303x & AFG-302x

Tính năng, đặc điểm

• 1uHz to 20 or 30MHz, 16-bit resolution with 1 mVpp to 10 Vpp amplitude. 1 or 2 channel (s)
• 250 MSa/s sampling rate for higher time resolution arbitrary waveforms
• 8M Points/channel standard waveform memory
• Input/output signal ground independent of housing and signal ground between channels also insulated.
• Synchronized phase operates up to 6 units and 12 channels
• Pulse waveform parameters can be set independently for more precise timing
• Harmonic signal generator
• Dual channel models support SUM modulation, coupling, tracking, and phase functions
• Built-in AM/FM/PM/FSK/PWM/SUM modulation, sweep and burst functions
• Provide USB/LAN/GPIB (optional) instrument control interface
• IQ baseband waveform output function for AFG-3032/3022

Tải file Thông số kỹ thuật: AFG-303x & AFG-302x (English Version)
