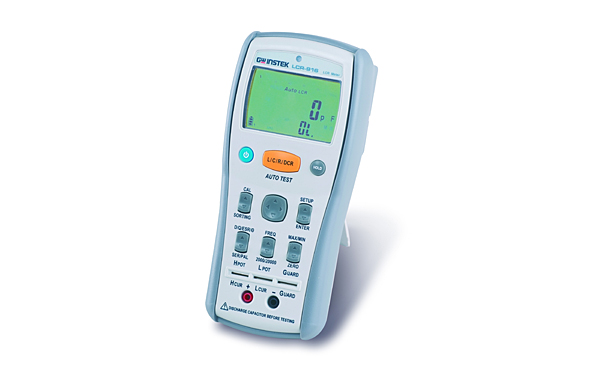

Máy đo LCR-916; LCR-915; LCR-914 cầm tay

Liên hệ

Đặc trưng

LCR-900 Specifications
The specifications apply when the LCR-900 is powered on for at least 30 minutes under +18°C~+28°C.

FULL SCALE
Main Display	20,000/2,000 counts selectable
Sub Display	2,000 counts
INDUCTANCE
Range	20μH ~ 20kH depends on the selected test frequency
Best Accuracy	+(0.2% rdg + 2 digits)
Resolution	0.001μH ~ 0.001kH depends on selected range
CAPACITANCE
Range	20pF ~ 20mF depends on the selected test frequency
Best Accuracy	+(0.2% rdg + 2 digits)
Resolution	0.001pF ~ 0.001mF depends on selected range
RESISTANCE
Range	20Ω ~ 200MΩ depends on the selected test frequency
Best Accuracy	+(0.2% rdg+ 2 digits)
Resolution	0.001Ω ~ 0.01MΩ depends on selected range
DC RESISTANCE
Range	200Ω ~ 200MΩ
Best Accuracy	+(0.2% rdg+ 2 digits)
Resolution	0.01Ω ~ 0.01MΩ depends on selected range
QUALITY FACTOR (Q)
Range	0.000 ~ 999
Accuracy	2 x (main parameter accuracy)
Best Resolution	0.001
DISSIPATION FACTOR (D)
Range	0.000 ~ 999
Accuracy	2 x (main parameter accuracy)
Best Resolution	0.001

PHASE ANGLE (θ)
Range	-90° ~ 90°
Accuracy	+(0.2% rdg+ 5 digits)
Resolution	0.1°
MEASUREMENT CIRCUIT
Parallel or Series selectable
AUTO LCR MODE
Automatically identifies and measures the DUT when the meter is switch on
SORTING MODE
+0.1%, +0.2%, +0.25%, +0.5%, +1.0%, +2.0%, +5.0%, +10.0%, +20.0%, +80%/-20% Selectable
OTHER FUNCTIONS
Auto range, Auto backlit, Max, Min, Data hold, Zero, Auto power off, 46 segments analogue bar
DISPLAY
LCD mono display
INTERFACE
USB
POWER SOURCE
AA Battery 1.5V x 4 or DC 5V(through AC adapter or USB cable)
DIMENSIONS & WEIGHT
95(W) × 207(H) × 52(D) mm, Approx. 630g
