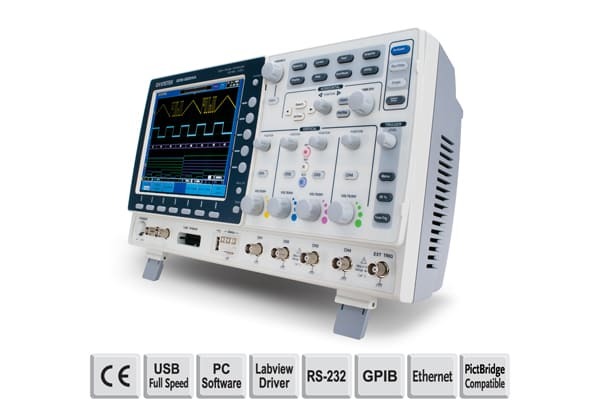

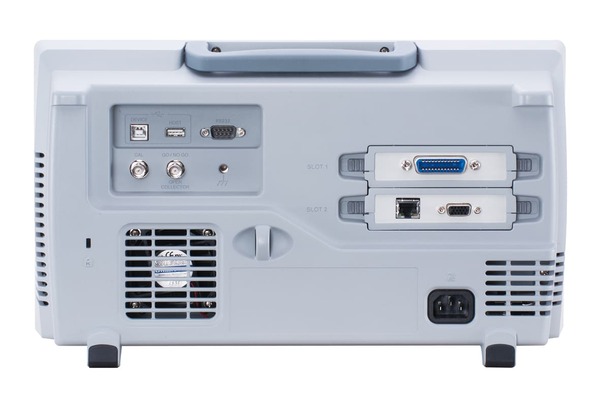

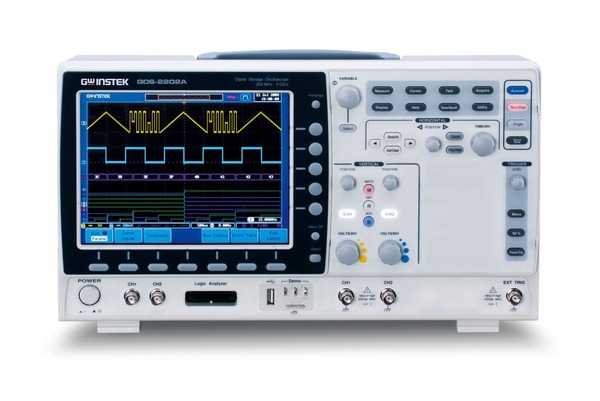

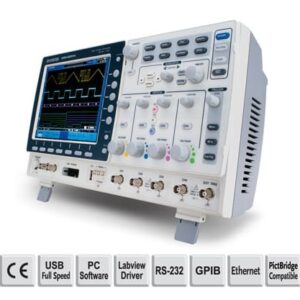

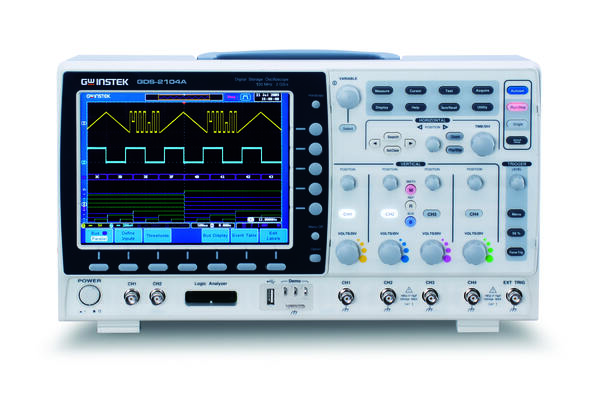

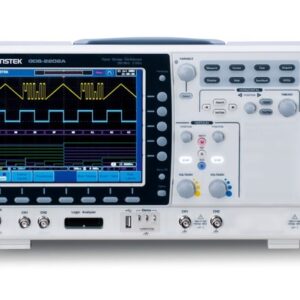

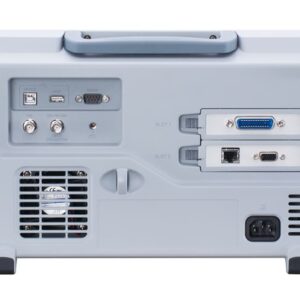

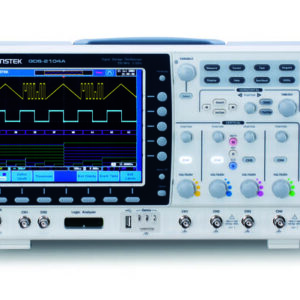

Máy hiện sóng lưu trữ kỹ thuật số dòng GDS-2000A

Tính năng, đặc điểm

• 300MHz/200MHz/100MHz/70MHz Bandwidth ,2 or 4 Input Channel
• 2GSa/s Real-time Sampling Rate and 100GSa/s Equivalent Time Sampling Rate
• 2Mega Points Record Length
• 1mV /div to 10V/div of Vertical Range
• 1ns/div to 100s/div of Time Base Range
• 80,000 wfm/s of Waveform Update Rate
• 8 inch 800*600 High Resolution TFT LCD Display
• Built-in Segmented Memory and Waveform Search Functions to Optimize the Efficiency of Record Length
• Zoom Window and Play/Pause can Rapidly Navigate the Waveforms
• 36 Automatic Measurement Functions Offers Various Measurement Selections
• Optional 8 or 16 digital channel with Logic analyzer(MSO)
• Optional Function Generator
• Flexible Remote Control Connectivity(Standard:USB ;Option:LAN/GPIB)
• Upgradable CAN/LIN bus analysis ,Advanced Logic ,Datalog ,DVM and H-expansion functionalities

Tải file Thông số kỹ thuật: GDS-2000A (English Version)
