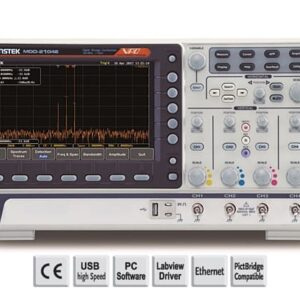

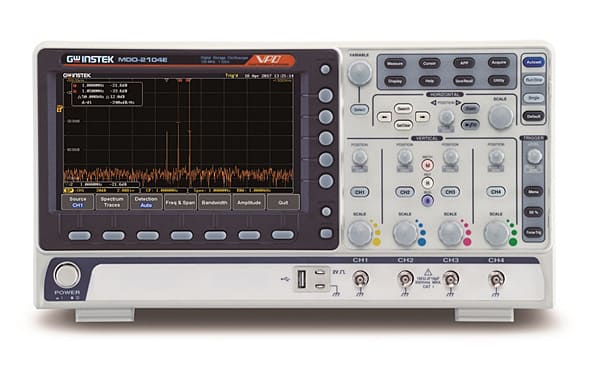

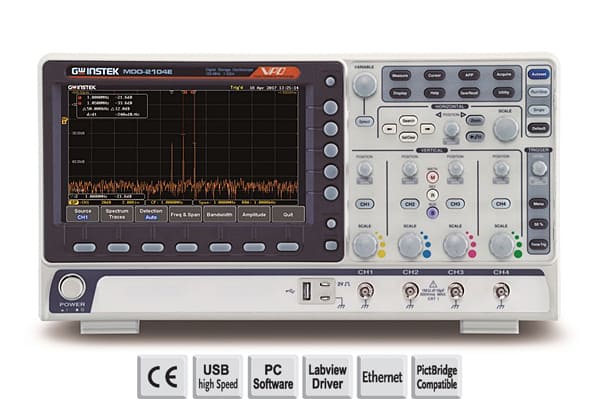

Máy hiện sóng miền hỗn hợp MDO-2000E

Tính năng, đặc điểm

• 200/100/70MHz bandwidth selections ; 2 or 4 channels
• Real time sampling rate for each channel is 1GSa/s (2 channel models)
• Maximum real time sampling rate is 1GSa/s (4 channel models)
• Per Channel 10M memory depth and VPO waveform display technology
• Waveform update rate up to 120,000 wfms/s
• 8 “ WVGA TFT LCD display
• Free Frequency Response Analyzer Software
• Maximum 1M FFT provides higher frequency domain resolution measurements
• High ,low and band pass filter functions
• 29,000 segmented memories and waveform search functions
• I2C/SPI/UART/CAN/LIN serial bus trigger and decoding function
• Data log function is able to track signal changes up to 1000 hours
• Network storage function
• Mask test function

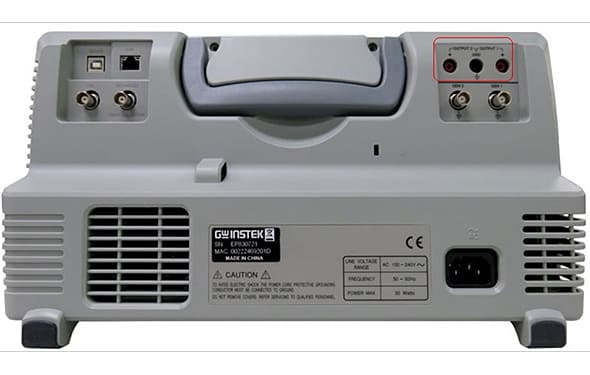

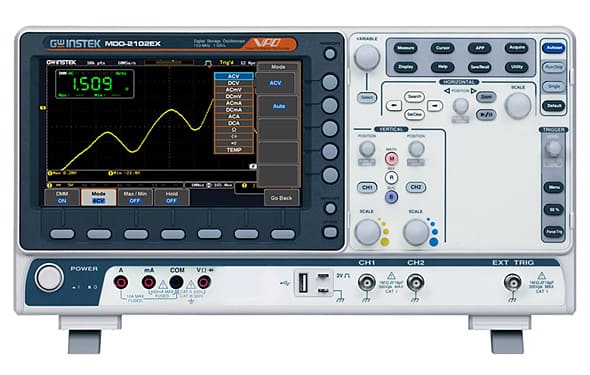

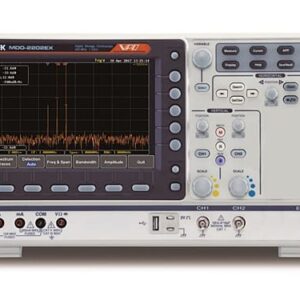

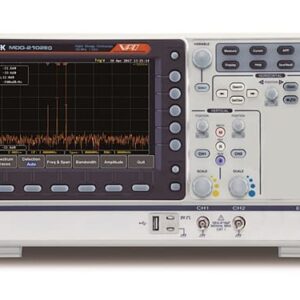

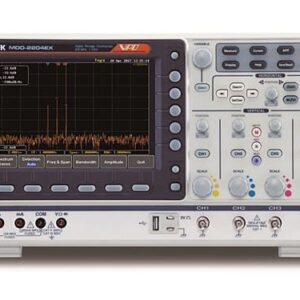

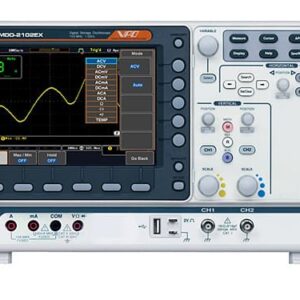

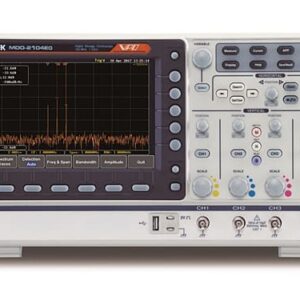

• MDO-2000EG equips with a spectrum analyzer and a dual channel 25MHz AWG MDO-2000EX equips with a spectrum analyzer ; a dual channel 25MHz AWG; DMM and power supply
• True RMS measurement in DMM function

Tải file Thông số kỹ thuật: MDO-2000E Series (English Version)
