Máy kiểm tra an toàn điện GPT-9900

Tính năng, đặc điểm

• 500VA AC Test Capacity
• Short Current > 200mA
• 240×64 Ice Blue Dot matrix LCD
• Sweep Function for DUT characteristic analysis
• Insulation resistance measurement up to 50GΩ(GPT-9903A/9904)
• Manual/Auto Mode
• Function Key for quick selection
• High intensity flash for caution & Status indication
• Safety INTERLOCK function
• Zero Crossing Turn-on Operation
• Controllable Ramp-up Time
• RMS Current Measurement
• High resolution: 1uA for measuring current, 2V for setting voltage
• PWM amplifier to enhance the power efficiency and reliable testing
• Max. 100 memory block for test condition (step) setting. And each step can be named individually.
• Remote terminal on the front panel for “start” and “stop” control

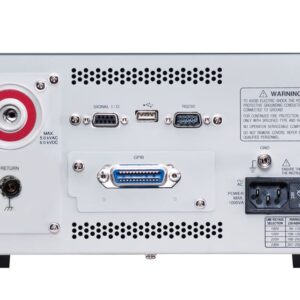

• Rear panel output available
• Interface : RS-232C, USB device, Signal I/O and GPIB (optional)

Tải file Thông số kỹ thuật: GPT-9900 Series (English Version)
