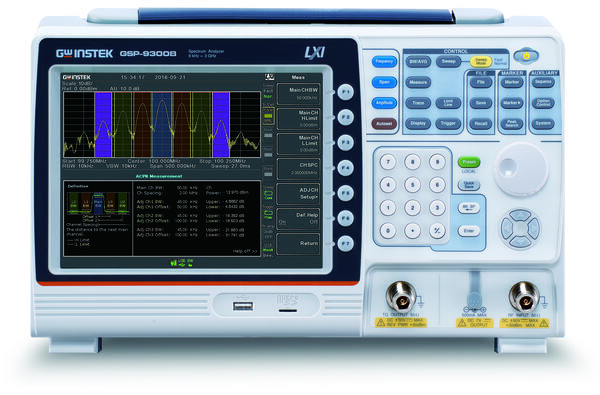

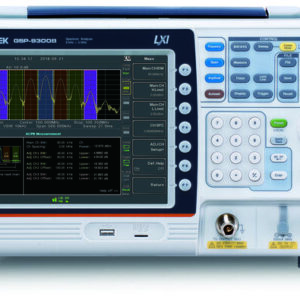

Máy phân tích phổ GSP-9300B

Tính năng, đặc điểm

• Frequency Range: 9kHz ~ 3 GHz
• 0.025ppm Frequency Stability and 1ppm aging Rate
• Built-in Preamplifier, 50dB Attenuator, and Sequence Function
• RBW: 1Hz ~ 1MHz
• Sensitivity: -149dBm/Hz (@PreAmp on)
• Built-in AM/FM Demodulation & Analysis
• Built-in P1dB point, Harmonic, Channel Power, N-dB bandwidth, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO, Noise Marker, Frequency Counter, Time Domain Power, Gated Sweep
• Built-in Spectrogram, Topographic and Dual-View Display Modes

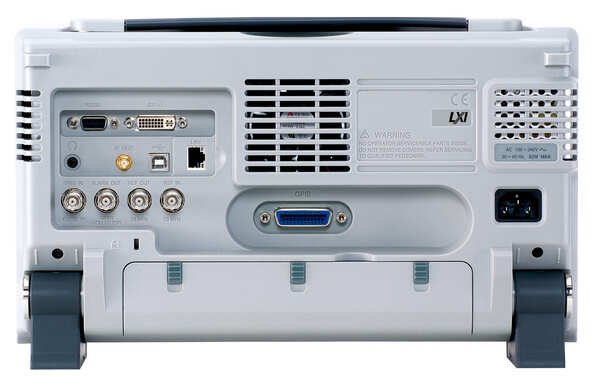

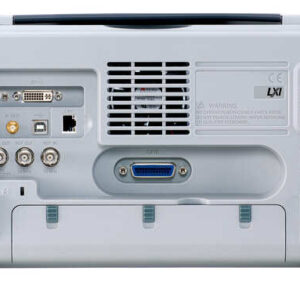

• Remote Control Interface: LAN, USB, RS-232
• Options: Tracking Generator, GPIB Interface

Tải file Thông số kỹ thuật: GSP-9300B
