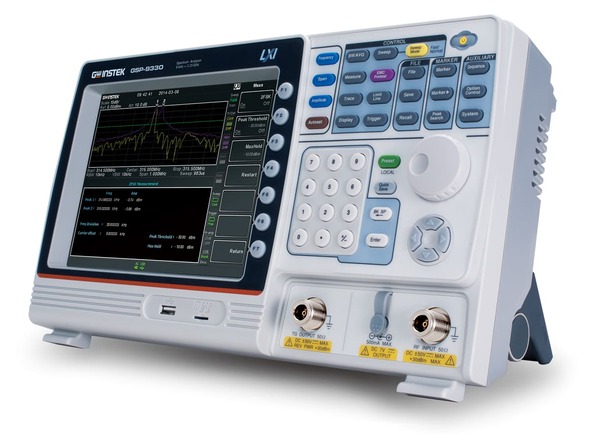

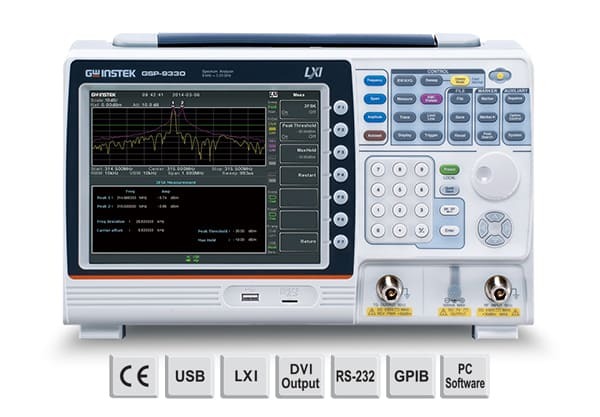

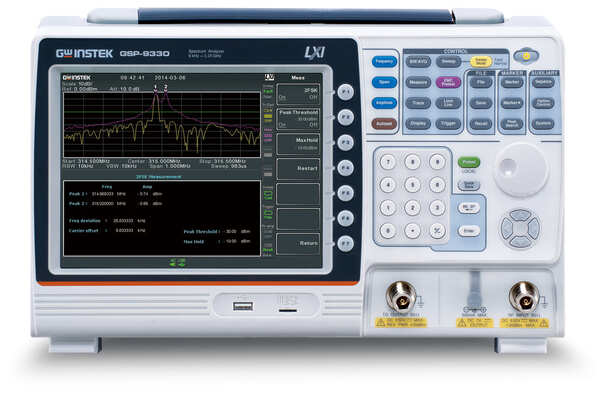

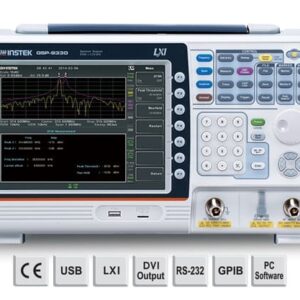

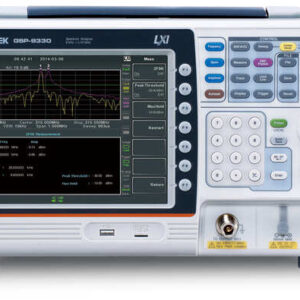

Máy phân tích phổ GSP-9330

Tính năng, đặc điểm

• Frequency Range: 9kHz ~ 3.25GHz
• 0.025ppm Frequency Stability and 1ppm aging Rate
• RBW: 1Hz ~ 1MHz (3dB), 6dB EMI Filter: 200Hz, 9kHz, 120kHz, 1MHz
• Fastest sweep time: 204us
• Sensitivity: -149 dBm/Hz (@PreAmp on)
• Built-in Preamplifier, 50dB Attenuator, and Sequence Function
• Built-in EMC pretest function, Quasi-Peak/Average EMI detect mode
• Built-in 2FSK Analysis, AM/FM/ASK/FSK Demodulation & Analysis
• Built-in P1dB point, Harmonic, CHPW, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO, N-dB bandwidth, Noise Marker, Frequency Counter, TDP, Gated Sweep
• Built-in Spectrogram, Topographic and Split-Window Display Modes
• Remote control EMI measurement software: SpectrumShot

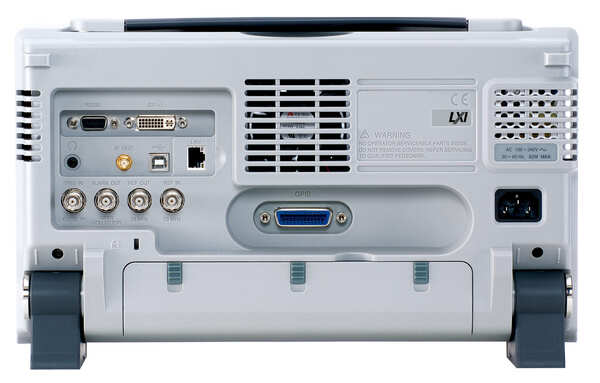

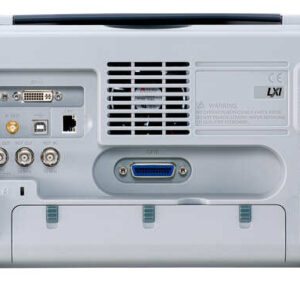

• Remote Control Interface: LAN, USB, RS-232
• Options: Tracking Generator, GPIB Interface

Tải file Thông số kỹ thuật: GSP-9330
