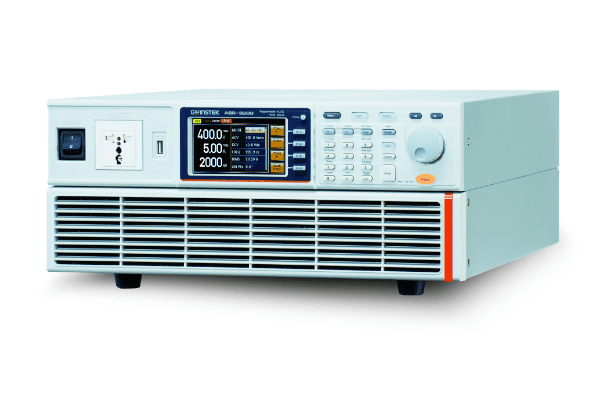

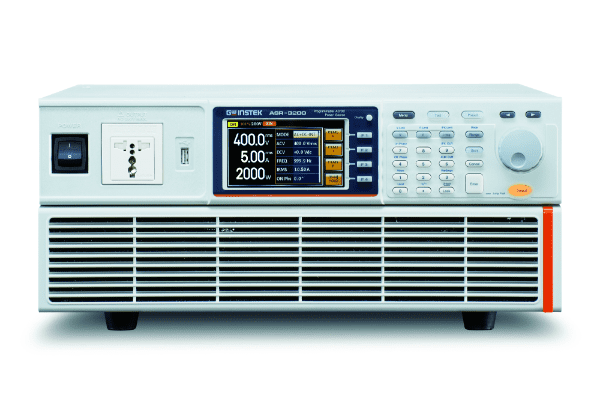

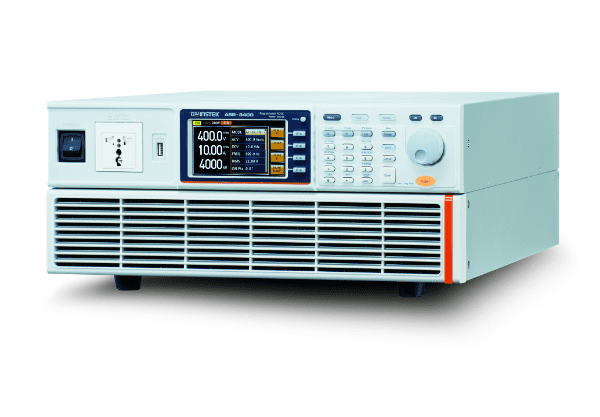

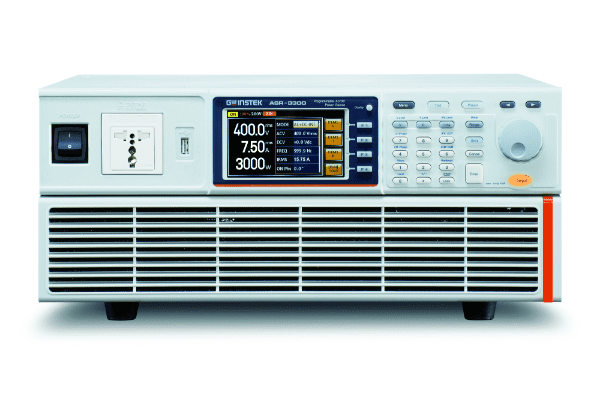

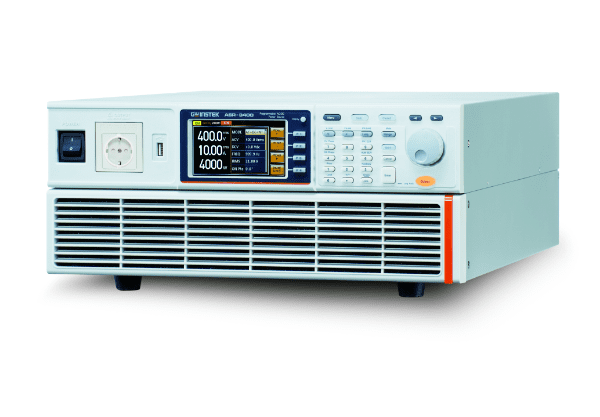

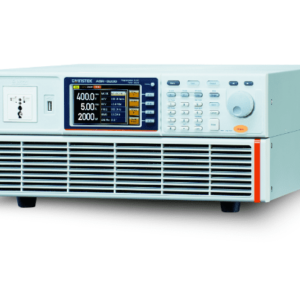

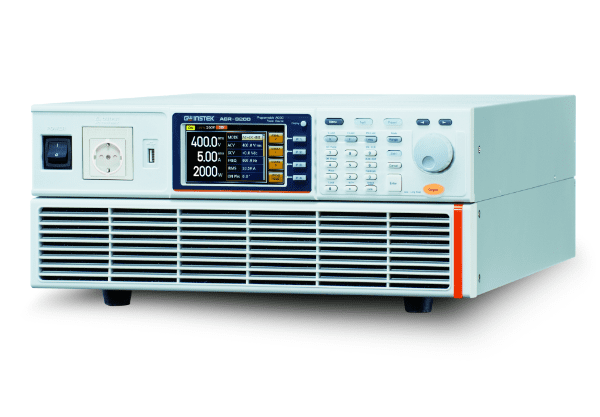

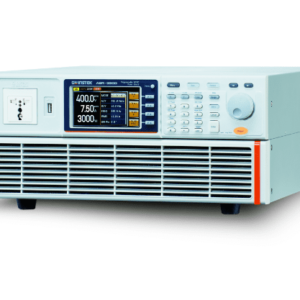

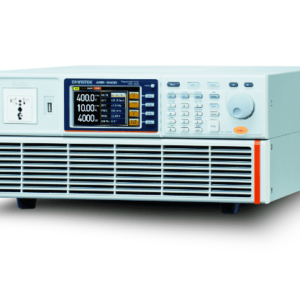

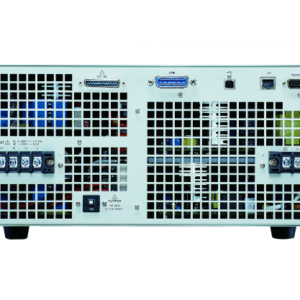

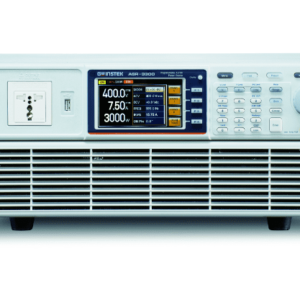

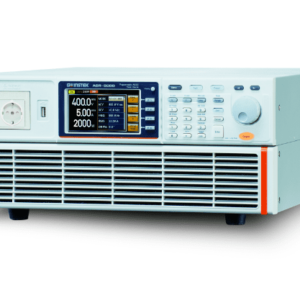

Nguồn điện AC / DC có thể lập trình dòng ASR-3000

Tính năng, đặc điểm

• Output Rating: AC 0 – 400 Vrms, DC 0 – ± 570 V
• Output Frequency up to 999.9 Hz
• DC Output (100% of Rated Power)
• Measurement Items: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF
• Voltage and Current Harmonic Analysis(THDv, THDi)
• Remote Sensing Capability
• OCP, OPP, OTP, AC Fail Detection and Fan Fail Alarm.
• Support Arbitrary Waveform Function
• Output Capacity: 2kVA/ 3kVA/4kVA
• Customized Phase Angle for Output On/Off
• Sequence and Simulation Function(up to 10 sets)

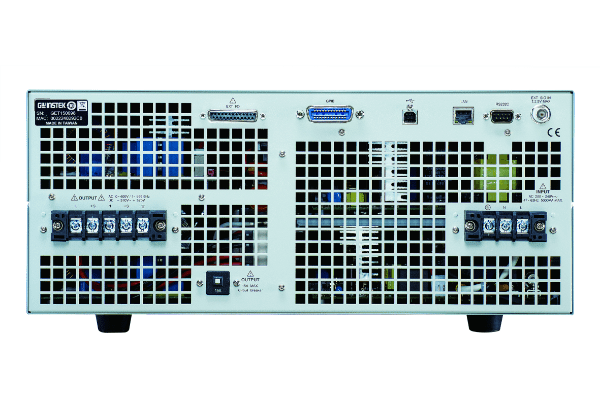

• Interface(std): USB, LAN, RS-232, GPIB
• Built-in External Control I/O and External Signal Input
• Built-in Output Relay Control
• Memory Function (up to 10 sets)
• Built-in Web Server

Tải file Thông số kỹ thuật: ASR-3000 Series (English Version)
